Window Screening
Window Screening
Window Screening
Window Screening is designed to provide effective protection against insects while allowing fresh air and natural light to pass through. Manufactured using fine-quality wires and materials, it offers durability, uniform mesh openings, and a clean appearance suitable for residential, commercial, and industrial environments.
Material and Type Of Window Screening
- Stainless steel wire
- Galvanized iron wire
- Aluminum wire
- Fiberglass
- Other related materials
Available Mesh Sizes
14 mesh, 16 mesh, 18 mesh, and other sizes as required.
Wire Diameter
Typically BWG 31 or BWG 32.
Benefits of Window Screening
-
Effective Insect Protection
Prevents insects while maintaining airflow and visibility. -
Good Air Circulation
Allows fresh air and ventilation without obstruction. -
Durable and Long-Lasting
Quality materials ensure resistance to wear and outdoor conditions. -
Clean and Uniform Appearance
Fine mesh structure provides a neat and unobtrusive look. -
Multiple Material Options
Available in metal and fiberglass variants to suit different needs.
Applications of Window Screening
- Residential windows and doors
- Commercial buildings and offices
- Industrial ventilation openings
- Balconies and verandas
- Insect protection for interiors
- General airflow and ventilation control
Technical Specification
| Wire Netting Type | wires per inch | Diameter | Size | Application / Remarks |
|---|---|---|---|---|
| Galvanized Iron | 6×6 | BWG 31–34 |
3'×100' 4'×100' 1×25M 1.2×30M 1.5×25M |
Electric galvanized after weaving White / Light blue |
| 8×8 | ||||
| 10×10 | ||||
| 14×14 | ||||
| 16×16 | ||||
| Enameled Iron | Same as above | Green / Dark green | ||
| Aluminum Iron | Same as above | Silver | ||
| Aluminum Wire | Same as above | Al-Mg alloy / Pure aluminum | ||
| Fiber Glass | 12×12 | BWG 31–32 | 3'×100', 4'×100', 1×25M | All colors available |
| 14×14 | ||||
| 16×16 | ||||
| 16×14 | ||||
| Plastic Wire | 12×12 | Same as above |
Hinged / Plain weave White, blue, green |
|
| 14×14 | ||||
| 16×16 | ||||
| 18×18 | ||||
| 18×14 | ||||
| 20×20 | ||||
| Stainless Steel |
14×14 16×16 18×18 18×14 20×20 |
(SWG38) (SWG37) (SWG36) (SWG35) (SWG34) |
3'×100' 4'×100' 1×25M 1.2×25M |
Material: 304 / 316 / 316L |
| PVC wire | 12x 12 | BWG31 BWG32 |
Same as above | Fit in with petroleum, pipeline, package |
Customization & Supply Capability
Custom mesh sizes, materials, and specifications are available on request. Bulk order quantities can be supplied with consistent quality and timely delivery.
Why Choose Rajesh Wires for Window Screening
Rajesh Wires offers Window Screening solutions manufactured with attention to material quality, uniform mesh structure, and durability. Our range of material options, customization support, and reliable supply make us a trusted choice for window screening applications.

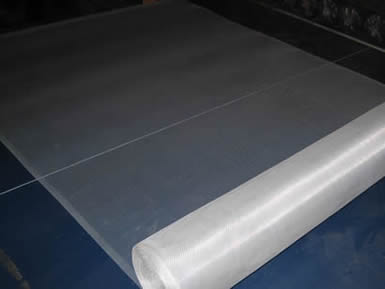

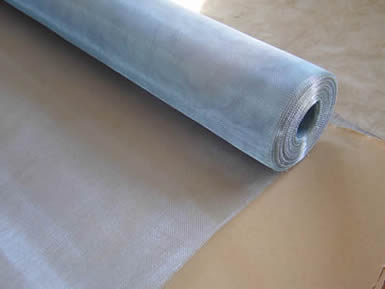

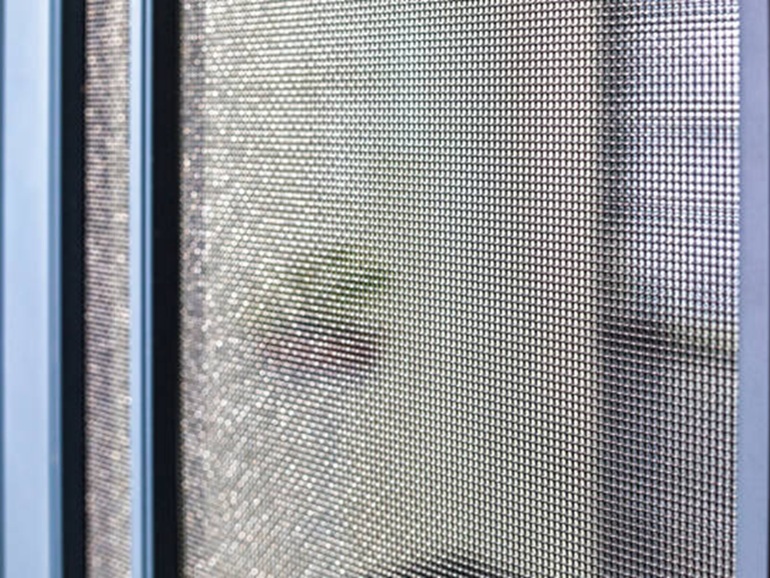

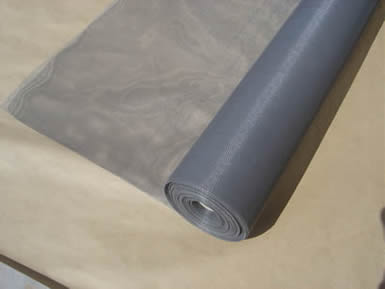

Here some images:
