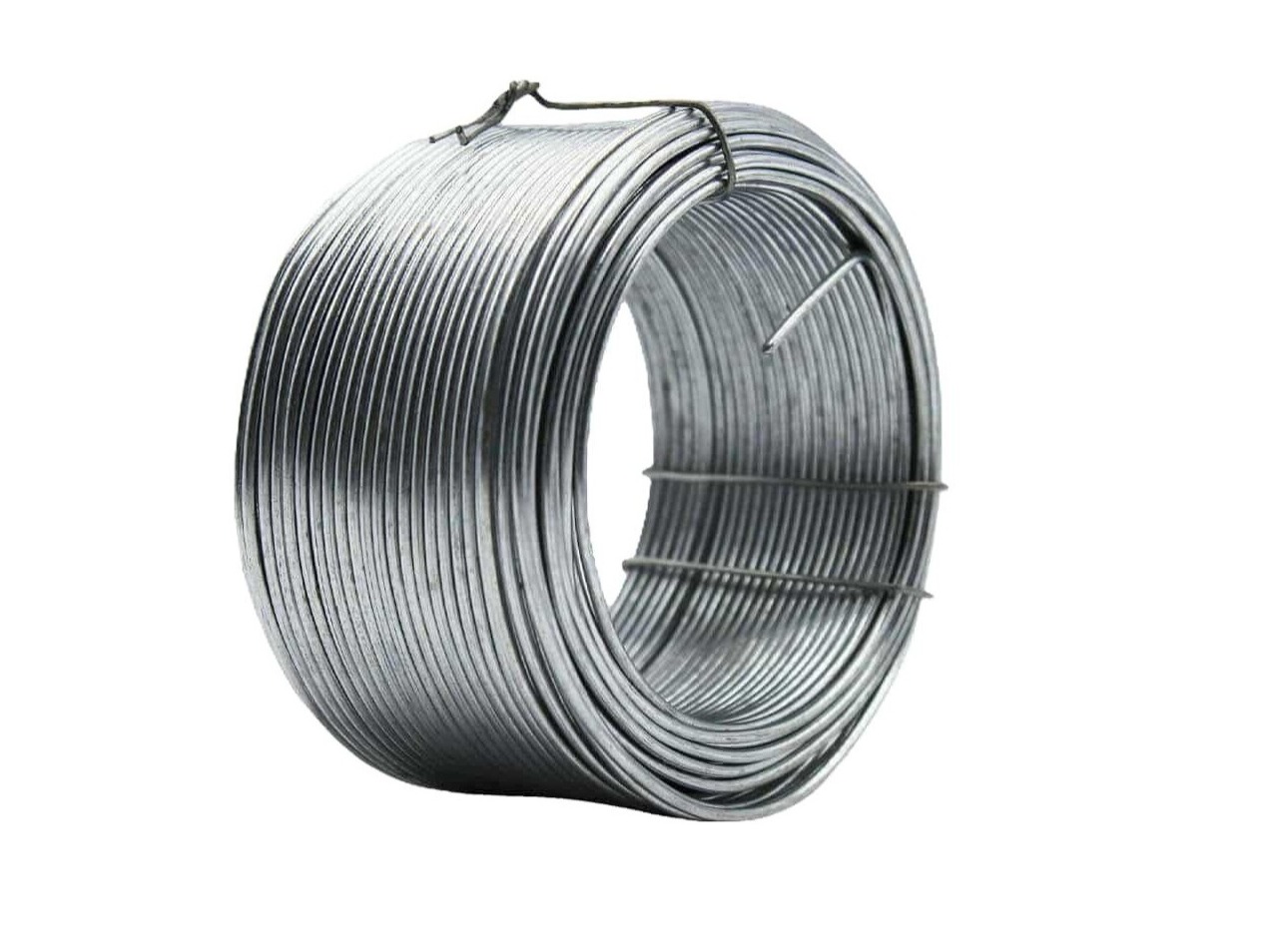

Galvanized Iron Wire
Galvanized Iron Wire
Galvanized Iron Wire
We supply Galvanized Iron (GI) Wire produced from low-carbon steel wire rods and zinc-coated through the galvanization process to enhance corrosion resistance, mechanical strength, and service life. The supplied wire conforms to standard SWG tolerances and is suitable for industrial, construction, agricultural, and engineering applications.
Material
Galvanized iron
Materials Offered
Low-Carbon Mild Steel Wire
Used as the base material for galvanized iron wire, ensuring good strength and formability.
Stainless Steel Wire
Available for specific applications where enhanced corrosion resistance and durability are required.
Available Sizes
10 SWG to 38 SWG
Technical Characteristics
-
Base Material
Low-carbon mild steel wire rod with controlled chemical composition. -
Galvanization
Uniform zinc coating for resistance against corrosion, moisture, and oxidation. -
Wire Gauge Range
Supplied from 10 SWG (heavy gauge) to 38 SWG (fine gauge). -
Tensile Strength
Balanced tensile strength with adequate elongation for load resistance. -
Surface Finish
Smooth zinc coating without cracks, flakes, or bare spots. -
Ductility & Formability
Suitable for bending and twisting without zinc peeling or wire fracture. -
Dimensional Accuracy
Consistent diameter maintained as per standard SWG tolerances.
Applications of Galvanized Iron Wire
- Construction binding and reinforcement
- Fencing, barbed wire, and wire mesh manufacturing
- Agriculture, horticulture, and farm use
- Cable armouring and industrial wiring
- Packaging, tying, and strapping
- General engineering and fabrication
Technical Specification
| SWG | Diameter (mm) | Diameter (inch) |
|---|---|---|
| 10 | 3.25 | 0.128 |
| 12 | 2.64 | 0.104 |
| 14 | 2.03 | 0.080 |
| 16 | 1.63 | 0.064 |
| 18 | 1.22 | 0.048 |
| 20 | 0.91 | 0.036 |
| 22 | 0.71 | 0.028 |
| 24 | 0.56 | 0.022 |
| 26 | 0.46 | 0.018 |
| 28 | 0.38 | 0.015 |
| 30 | 0.31 | 0.012 |
| 32 | 0.27 | 0.010 |
| 34 | 0.23 | 0.009 |
| 36 | 0.19 | 0.0075 |
| 38 | 0.15 | 0.006 |
Note: Diameters are nominal and may vary slightly as per manufacturing tolerance.
Supply Capability
- Supply range: 10 SWG to 38 SWG
- Available in coils as per standard industrial packing
- Suitable for bulk and regular requirements
Why Choose Rajesh Wires for Galvanized Iron Wire
Rajesh Wires supplies Galvanized Iron Wire manufactured under controlled processes to ensure uniform zinc coating, strength, and durability. Our focus on material quality, process consistency, and flexible supply options ensures dependable performance for construction, fencing, and industrial applications.
