Crimped Wire Mesh
Crimped Wire Mesh
Crimped Wire Mesh
We manufacture Crimped Wire Mesh using precision crimping and weaving techniques to produce strong, dimensionally stable mesh suitable for heavy-duty industrial applications. Manufactured from wire sizes ranging from 14 SWG to 20 SWG, our crimped mesh delivers high strength, rigidity, and consistent aperture accuracy.
Materials Offered
Galvanized Iron (GI) - Crimped Wire Mesh
Zinc-coated wire offering corrosion resistance and long service life for outdoor and industrial environments.

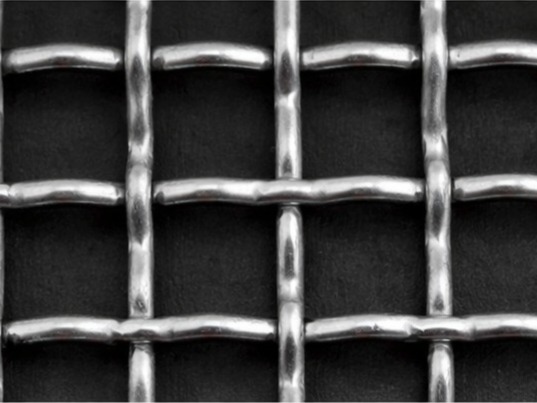

Stainless Steel - Crimped Wire Mesh
Available in SS 304 / SS 316 (on request) for corrosion resistance, hygiene, and chemical exposure applications.

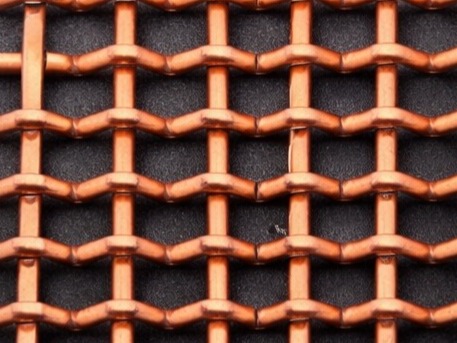

Copper Wire - Crimped Wire Mesh
Suitable for specialized filtration and applications requiring corrosion resistance and material stability.

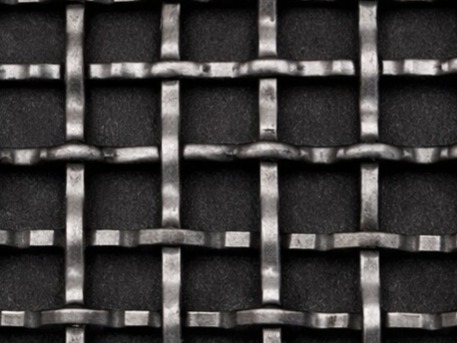

High Carbon Steel - Crimped Wire Mesh
High tensile strength wire designed for heavy-duty screening, grading, and vibration applications.
Technical Characteristics
-
Wire Gauge Range
Manufactured using wire sizes from 14 SWG to 21 SWG. -
Crimping Type
Pre-crimped wires woven to maintain uniform apertures under load. -
Weave Structure
Interlocking weave providing rigidity and dimensional stability. -
Aperture Accuracy
Consistent mesh openings achieved through controlled manufacturing. -
Mechanical Strength
High load-bearing capacity with resistance to deformation.
Benefits of Crimped Wire Mesh
-
High Structural Strength
Crimping before weaving increases rigidity and load-bearing capacity. -
Uniform and Stable Openings
The crimped pattern maintains consistent spacing during operation. -
Excellent Screening Performance
Ideal for efficient separation of coarse and heavy materials. -
Durable Construction
Designed to withstand vibration and continuous industrial use. -
Multi-Industry Suitability
Available in steel, galvanized, and stainless steel materials.
Applications of Crimped Wire Mesh
- Mining, quarrying, and stone crushing
- Coal, sand, gravel, and aggregate screening
- Vibrating screens and industrial sieves
- Industrial filtration and separation
- Construction and reinforcement works
- Architectural and industrial enclosures
Technical Specification
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh |
|---|---|---|
| 14 | 2.0 | 1-4 |
| 16 | 1.6 | 1-10 |
| 17 | 1.4 | 1-10 |
| 18 | 1.2 | 1-10 |
| 19 | 1.0 | 1-12 |
| 20 | 0.9 | 4-14 |
| 21 | 0.8 | 4-14 |
Manufacturing & Supply Capability
- Wire materials: GI, SS, Copper, High Carbon Steel
- Wire size range: 14 SWG to 21 SWG
- Custom mesh openings and sheet dimensions
- Cut-to-size panels and roll form supply
- Suitable for bulk, OEM, and project-based orders
Why Choose Rajesh Wires for Crimped Wire Mesh
Rajesh Wires manufactures Crimped Wire Mesh using controlled crimping and precise weaving processes to deliver strong, stable, and consistent mesh performance. Our focus on material quality, structural integrity, and application-based customization ensures dependable solutions for mining, construction, industrial, and food-related screening requirements.
Here some images:
