Stainless Steel Wire Mesh
Stainless Steel Wire Mesh
Stainless Steel Wire Mesh
Stainless Steel Wire Mesh is manufactured using high-grade stainless steel wires woven into precise mesh structures. It offers excellent strength, corrosion resistance, and dimensional stability, making it suitable for demanding industrial, filtration, and food processing applications. Its clean surface and consistent mesh openings support reliable performance across varied environments.
Material
SUS302, SUS304, SUS316, SUS304L, and SUS316L stainless steel.
Weaving Pattern
Plain weave, twill weave, and dutch weave.
Benefits of Stainless Steel Wire Mesh
-
Excellent Corrosion Resistance
Stainless steel material ensures long service life in harsh and humid environments. -
High Strength and Durability
Maintains structural integrity under continuous industrial use. -
Precise and Uniform Mesh Openings
Accurate weaving supports reliable filtration and screening performance. -
Hygienic and Easy to Clean
Smooth surface makes it suitable for food and pharmaceutical applications. -
Wide Temperature Resistance
Performs consistently under high and low temperature conditions.
Applications of Stainless Steel Wire Mesh
- Industrial filtration and screening
- Food processing and handling
- Pharmaceutical and chemical processing
- Water and air filtration systems
- Laboratory and testing applications
- Protective guards and architectural use
Technical Specification
| Stainless Steel Wire Mesh and Wire Cloth – Plain Weave | |||
|---|---|---|---|
| Mesh | Wire Dia. (mm) | Opening (mm) | Material (AISI) |
| 7 × 7 Mesh | 1.00 | 2.63 | 304 / 316 |
| 10 × 10 Mesh | 0.60 | 1.94 | 304 / 316 |
| 12 × 12 Mesh | 0.50 | 1.62 | 304 / 316 |
| 16 × 16 Mesh | 0.40 | 1.19 | 304 / 316 |
| 16 × 16 Mesh | 0.35 | 1.24 | 304 / 316 |
| 18 × 18 Mesh | 0.35 | 1.06 | 304 / 316 |
| 20 × 20 Mesh | 0.40 | 0.87 | 304 / 316 |
| 24 × 24 Mesh | 0.26 | 0.80 | 304 / 316 |
| 30 × 30 Mesh | 0.30 | 0.55 | 304 / 316 |
| 35 × 35 Mesh | 0.17 | 0.56 | 304 / 316 |
| 40 × 40 Mesh | 0.23 | 0.40 | 304 / 316 |
| 50 × 50 Mesh | 0.20 | 0.31 | 304 / 316 |
| 60 × 60 Mesh | 0.15 | 0.27 | 304 / 316 |
| 70 × 70 Mesh | 0.12 | 0.24 | 304 / 316 |
| 80 × 80 Mesh | 0.13 | 0.19 | 304 / 316 |
| 90 × 90 Mesh | 0.12 | 0.16 | 304 / 316 |
| 100 × 100 Mesh | 0.10 | 0.15 | 304 / 316 |
| 120 × 120 Mesh | 0.09 | 0.12 | 304 / 316 |
| 150 × 150 Mesh | 0.063 | 0.11 | 304 / 316 |
| 180 × 180 Mesh | 0.053 | 0.09 | 304 / 316 |
| 200 × 200 Mesh | 0.053 | 0.07 | 304 / 316 |
Customization & Supply Capability
Custom mesh sizes, weaving patterns, and stainless steel grades are available on request. Bulk order quantities can be supplied with consistent quality and reliable delivery.
Why Choose Rajesh Wires for Stainless Steel Wire Mesh
Rajesh Wires manufactures Stainless Steel Wire Mesh using carefully selected materials, precision weaving techniques, and strict quality inspection. Our focus on uniform structure, material consistency, and application-based customization ensures dependable performance for industrial, food, and filtration requirements.

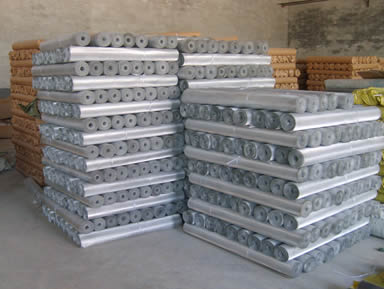

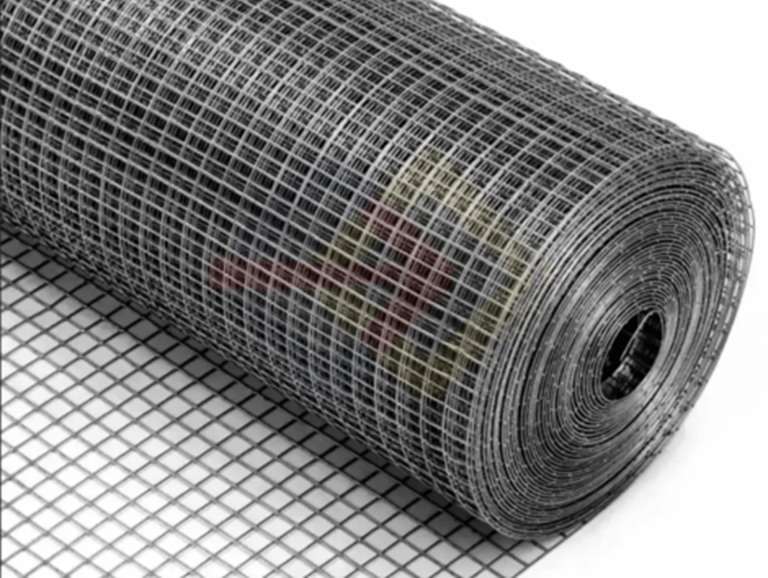

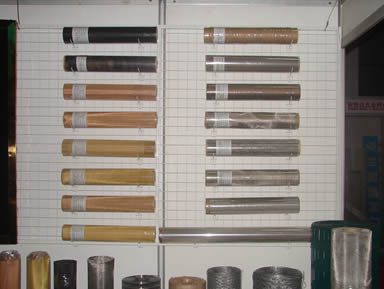

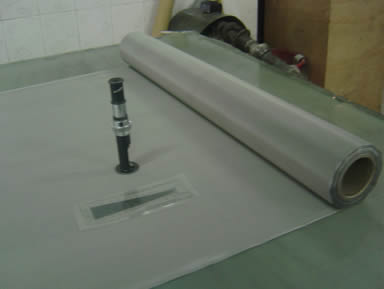

Here some images:
